Summarize 概述

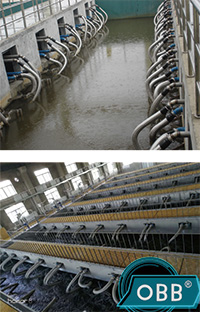

The special hose for MBR membrane module developed and produced by OBB® can also be called: special hose for membrane bioreactor (water production hose, water collection hose and aeration hose), which is a new type of environmental protection patent hose developed by our company for large-scale environmental protection projects. It has the advantages of preventing blockage of aerator, small bubbles, high oxygen utilization rate and high power efficiency. The new patented aeration hose, which integrates stirring, oxygenation and flushing, fully meets the requirements of "practicality", "quick and simple maintenance" and "low price" for wastewater treatment.
OBB®研发生产MBR膜组器专用软管也可叫作：膜生物反应器专用软管（产水软管、集水软管、曝气软管），是我公司为大型环保工程研发的新型环保软管。具有防止曝气器的堵塞、气泡小、氧利用率和动力效率高等优势。集搅拌、增氧、冲刷为一体的新型曝气软管，充分实现了废水治理“实用”、“维护快捷简便”、“价廉”等要求。
Product features 产品特点
1. Bending freely and not limited by working space. The bending part will not be folded and cracked. It has good flexibility and fatigue resistance, which makes it easy to absorb various motion deformation and cyclic loads. Convenient
installation and maintenance.
2. Good sealing performance. With high pressure and negative pressure resistance, the working pressure can reach 2.5MPa and the negative pressure can reach 0.3MPa.
3. The temperature resistance range is-50℃ ~ 120℃, and the tube hardening and softening will not affect the service function due to the change of climate or service temperature.
4. It has anti-corrosion and anti-aging properties. In view of the complexity of sewage quality and the corrosion induced by other solid microorganisms, our company adopts the spraying method of polymer special materials.
The patented technology of completely isolating the pipe body from the medium in the aeration tank eliminates the corrosion factor of austenitic stainless steel pipe body caused by the medium in the aeration tank, and greatly
prolongs the whole service life of the hose.
1. 弯曲自如、不受作业空间限制。其弯曲部分不会发生折叠折裂的现象。具有良好的柔软性和抗疲劳性，使它很容易吸收各种运动变形和循环载荷。 安装维护方便。
2. 密封性能好。具有耐高压与负压性能，工作压力可达2.5MPa，负压可达-0.3MPa。
3. 耐温范围为-50℃～120℃，不会因气候或使用温度的变化而出现管体硬化及软化影响使用功能。
4. 具有防腐﹑耐老化性能。针对污水水质的复杂性及其他固体微生物的腐蚀诱因腐蚀，我公司采用高分子特种材料喷涂方法。
使管体与曝气池中介质完全隔离的技术，消除了曝气池中介质造成奥氏体不锈钢管体腐蚀的因素，极大的延长了软管整体的使用寿命。
Connection mode 连接方式

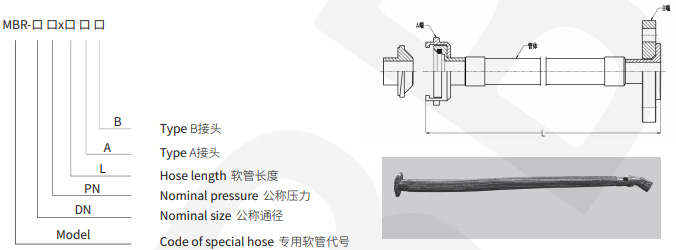

The connection forms of both ends of the hose can be quick-connect type or flange type (it is more convenient to disassemble when quick-connect flushing membrane module is adopted), The connection mode can be customized according to the needs of users.
软管两端的连接形式可采用快接式、法兰式（采用快接冲洗膜组器时更方便拆卸）,可根据用户的需要定制连接方式。
