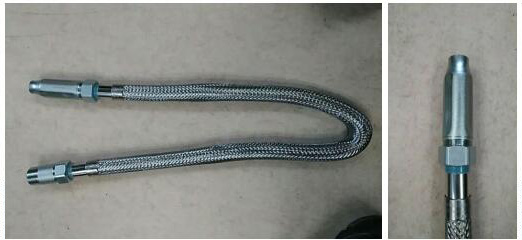

Omega ohm25-1 series flexible woven fire sprinkler hose assemblies are used to install sprinkler heads in ceiling systems of various commercial buildings.
Omega ohm25-1 series flexible woven fire sprinkler hose assembly through the country... Authentication
Omega ohm25-1 series flexible woven fire sprinkler hose assemblies can be selected as follows: 700 1000 1200 1500 1800
Note: the specifications of other Omega ohm25-1 series flexible woven fire sprinkler hose assemblies can only be determined if they are applicable after the evaluation of the project situation.

Technical specifications:
Maximum working pressure: 175psi / 1206kpa
Connection: through 1 inch / 25 mm
NPT / BSPT male to branch (inlet)
Through 1 / 2 inch / 15 mm
NPT / BSPT female connection to sprinkler head (outlet)
Minimum bending radius: 6 inches / 150 mm
Maximum allowable bending number of each flexible hose ≥ 50000

Material specification
Corrugated flexible hose: Type 304 stainless steel
Braid and ring: Type 304 stainless steel
Gasket: EPDM
Isolating ring: Nylon
Nut, short-circuit, reducer: carbon steel galvanized

Features
Through national certification and solution treatment, it has high pressure resistance and good flexibility
Integrated structure. 100% factory pressure measurement, zero leakage on site
Universal installation fastener design, suitable for all kinds of installation occasions
